Understanding PCB Design: A Comprehensive Guide

  <p>Printed Circuit Boards (PCBs) are the foundation of every electronic device, from smartphones to industrial equipment. Whether you're a startup developing your first hardware product or an engineer optimizing designs, understanding PCB design fundamentals is crucial for success.</p>

  <h2>Understanding Schematic Design</h2>
  <p>The journey begins with schematic capture - translating your circuit idea into a standardized diagram. Modern tools like KiCad, Altium Designer, and Eagle make this process intuitive, but understanding the principles is key:</p>
  <ul>
    <li><strong>Component symbols:</strong> Learn standard symbols for resistors, capacitors, ICs, and connectors</li>
    <li><strong>Net naming:</strong> Use clear, hierarchical naming (VCC_3V3, GND_ANALOG, SPI_MOSI)</li>
    <li><strong>Design blocks:</strong> Organize your schematic into functional blocks (power supply, MCU, sensors)</li>
    <li><strong>Annotation:</strong> Add voltage levels, critical frequencies, and design notes</li>
  </ul>
  <img src="/images/blog/pcb-schematic-diagram.jpg" alt="Well-organized PCB schematic showing functional blocks" class="rounded-md my-4" />

  <h2>Strategic Component Selection</h2>
  <p>Component selection impacts cost, availability, and manufacturability. Our experience manufacturing across three continents has taught us these critical factors:</p>
  <h3>Availability and Lead Times</h3>
  <ul>
    <li>Prioritize components with multiple suppliers and stable availability</li>
    <li>Check distributor stock levels and manufacturer lifecycle status</li>
    <li>Consider geographic availability - some parts are region-specific</li>
    <li>Plan for 15-20% component cost fluctuation in your budget</li>
  </ul>

  <h3>Package Selection</h3>
  <p>Choose packages that balance size, thermal performance, and assembly complexity:</p>
  <ul>
    <li><strong>0603/0402 passives:</strong> Standard for most designs, good availability</li>
    <li><strong>QFN/DFN packages:</strong> Excellent thermal performance, smaller footprint</li>
    <li><strong>BGA packages:</strong> High pin count but requires X-ray inspection</li>
    <li><strong>Through-hole:</strong> Use sparingly for connectors and high-stress components</li>
  </ul>

  <h2>PCB Layout Best Practices</h2>
  <p>Layout transforms your schematic into a physical design. This phase determines signal integrity, thermal performance, and manufacturability:</p>

  <h3>Layer Stack-up Planning</h3>
  <p>Start with the right layer configuration:</p>
  <ul>
    <li><strong>2-layer:</strong> Simple designs, cost-effective, limited routing</li>
    <li><strong>4-layer:</strong> Better EMI performance, dedicated power/ground planes</li>
    <li><strong>6+ layers:</strong> High-speed designs, impedance control, dense routing</li>
  </ul>

  <h3>Routing Guidelines</h3>
  <ul>
    <li>Keep high-speed differential pairs matched within 5 mils</li>
    <li>Maintain 3W spacing between traces (3x trace width) for crosstalk reduction</li>
    <li>Use 45° angles instead of 90° for better signal integrity</li>
    <li>Place decoupling capacitors within 0.5" of IC power pins</li>
  </ul>

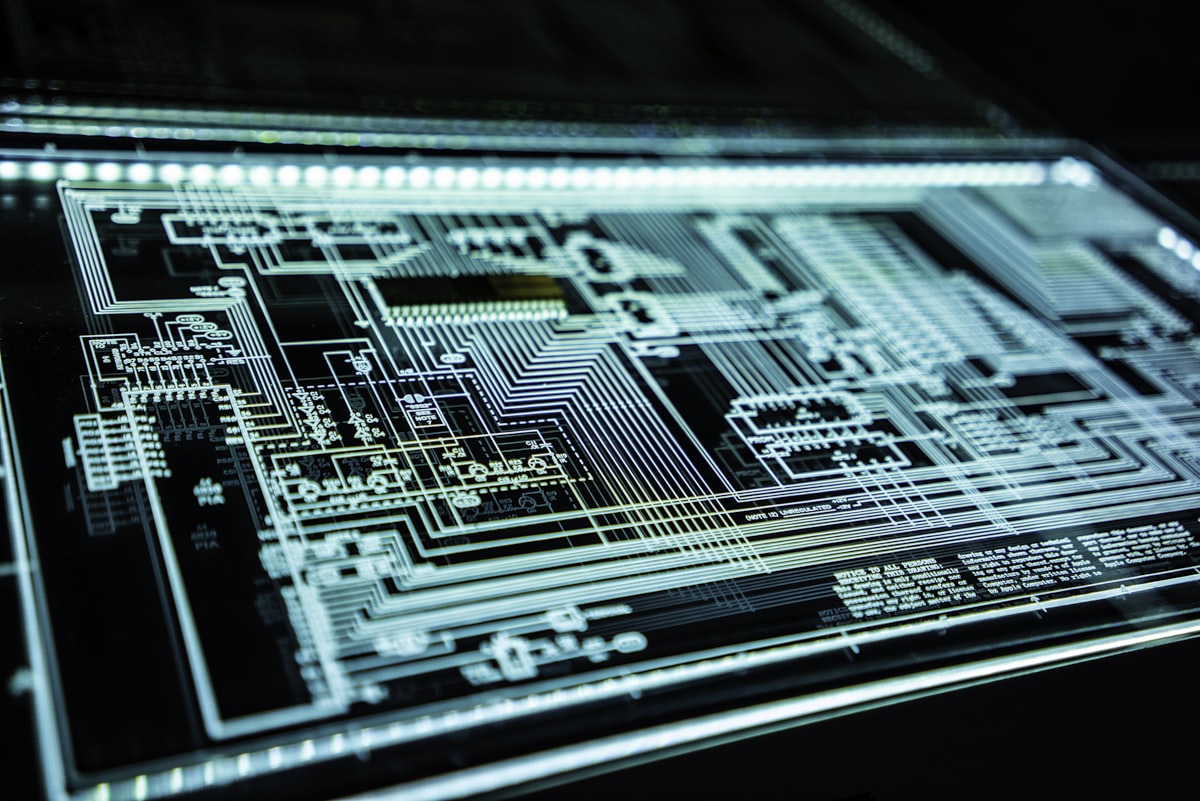

  <img src="/images/blog/pcb-layout-design.jpg" alt="Professional PCB layout showing proper trace routing and component placement" class="rounded-md my-4" />

  <h2>Design for Manufacturing (DFM)</h2>
  <p>Great designs consider manufacturing from day one. Here's what our production team checks:</p>

  <h3>Manufacturing Tolerances</h3>
  <ul>
    <li><strong>Minimum trace width:</strong> 0.15mm (6 mil) for standard, 0.1mm (4 mil) for advanced</li>
    <li><strong>Via size:</strong> 0.3mm (12 mil) minimum, 0.2mm (8 mil) for HDI</li>
    <li><strong>Solder mask clearance:</strong> 0.05mm minimum from pad edge</li>
    <li><strong>Silkscreen:</strong> 0.15mm line width, 1mm character height</li>
  </ul>

  <h3>Assembly Considerations</h3>
  <ul>
    <li>Maintain 0.25mm courtyard between components</li>
    <li>Use fiducial markers for automated optical inspection</li>
    <li>Panelize boards for efficient assembly (consider V-scoring vs tab-routing)</li>
    <li>Add testpoints for in-circuit testing (ICT) on critical nets</li>
  </ul>

  <h2>Cost Optimization Strategies</h2>
  <p>Smart design decisions can significantly reduce manufacturing costs:</p>
  <ul>
    <li><strong>Standard materials:</strong> FR-4 with 1oz copper is most economical</li>
    <li><strong>Minimize layer count:</strong> Each additional layer adds 20-30% cost</li>
    <li><strong>Standard finishes:</strong> HASL is cheapest, ENIG for better shelf life</li>
    <li><strong>Consolidate part count:</strong> Use resistor arrays and multi-channel ICs</li>
  </ul>

  <h2>Common Pitfalls to Avoid</h2>
  <p>Learn from these frequent issues we see in design reviews:</p>
  <ol>
    <li><strong>Insufficient thermal relief:</strong> Large copper pours need thermal reliefs for soldering</li>
    <li><strong>Missing test points:</strong> Add them early, removing them later is easy</li>
    <li><strong>Inadequate power delivery:</strong> Calculate current paths and use appropriate trace widths</li>
    <li><strong>Poor connector placement:</strong> Consider cable routing and mechanical stress</li>
    <li><strong>Forgotten mounting holes:</strong> Plan mechanical integration from the start</li>
  </ol>
